The TS_LANCZOS function can be used to smoothly interpolate the input data over a Lanczos kernel or be used as a low-pass filter.
This routine is written in the IDL language. Its source code can be found in the file TS_LANZCOS.pro in the lib subdirectory of the IDL distribution.
Examples
range = [0:!pi:.01]
data = sin(range)
data[0:range.length/2-1] *= (indgen(range.length/2) mod 3 - 1)
tsdata = ts_lanczos( data, weight=50, low_freq=0, high_freq=.05, /EDGE_TRUNCATE )
p1 = plot(range,data, title='Original Data vs LANCZOS', name='Data')
p2 = plot(range,tsdata,'2r',/over, name='TS_LANCZOS')
l=legend(target=[p1,p2])

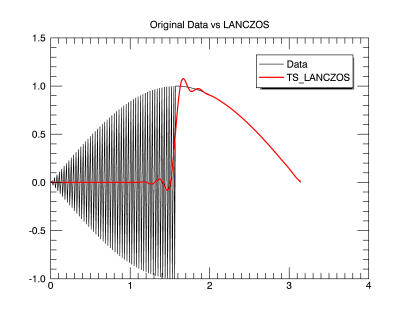

IDL plots:
Syntax
Result = TS_LANCZOS( X [, WEIGHT=value] [, LOW_FREQ=value] [, HIGH_FREQ=value] [, /DOUBLE] [, SCALE_FACTOR=value] [, /EDGE_MIRROR] [, /EDGE_TRUNCATE] [, /EDGE_WRAP] [, /EDGE_WRAP] [, /EDGE_ZERO] [, /NAN] )
Return Value
The result is an n-element vector of the same data type as the input vector.
Arguments
X
An n-element single- or double-precision floating-point vector.
Keywords
DOUBLE
Set this keyword to force the computations to be done in double-precision arithmetic.
HIGH_FREQ
A scalar indicating the upper bound on the frequency. Default value is .5.
LOW_FREQ
A scalar indicating the lower bound on the frequency. Default value is 0.
WEIGHT
A scalar value for the number of weights to use in generating the LANCZOS kernel.
SCALE_FACTOR
See Scale_Factor.
EDGE_MIRROR
See EDGE_MIRROR.
EDGE_TRUNCATE
See EDGE_TRUNCATE.
EDGE_WRAP
See EDGE_WRAP.
EDGE_ZERO
See EDGE_ZERO.
NAN
See NAN.
Version History
See Also
SMOOTH, TS_DIFF, TS_FCAST
