MirrorRaster Task

This task constructs an ENVIRaster from a source raster that is reflected (flipped) horizontally, vertically, or both.

The virtual raster associated with this task is ENVIMirrorRaster.

Example

; Start the application

e = ENVI()

; Open an input file

File = Filepath('qb_boulder_msi', Subdir=['data'], $

  Root_Dir=e.Root_Dir)

Raster = e.OpenRaster(File)

; Get the task from the catalog of ENVITasks

Task = ENVITask('MirrorRaster')

; Define inputs

Task.INPUT_RASTER = Raster

Task.HORIZONTAL = 'true'

; Run the task

Task.Execute

; Get the collection of objects currently in the Data Manager

DataColl = e.Data

; Add the output to the Data Manager

DataColl.Add, Task.OUTPUT_RASTER

; Display the result

View = e.GetView()

Layer = View.CreateLayer(Task.OUTPUT_RASTER)

Syntax

Result = ENVITask('MirrorRaster')

Input properties (Set, Get): HORIZONTAL, INPUT_RASTER, OUTPUT_RASTER_URI, VERTICAL

Output properties (Get only): OUTPUT_RASTER

Properties marked as "Set" are those that you can set to specific values. You can also retrieve their current values any time. Properties marked as "Get" are those whose values you can retrieve but not set.

Methods

This task inherits the following methods from ENVITask:

Properties

This task inherits the following properties from ENVITask:

COMMUTE_ON_DOWNSAMPLE

HORIZONTAL (optional)

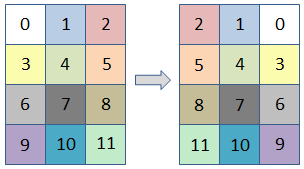

Set this property to flip the raster horizontally. The options are true or false (default).

If you specify both the VERTICAL and HORIZONTAL properties, the image is flipped in both directions:

INPUT_RASTER (required)

Specify an input raster to process.

OUTPUT_RASTER

This is a reference to the output raster of filetype ENVI.

OUTPUT_RASTER_URI (optional)

Specify a string with the fully qualified filename and path to export the associated OUTPUT_RASTER.

If you set this property to an asterisk symbol (*), the output raster will be virtual and not written to disk.
If you do not specify this property, or set it to an exclamation symbol (!), a temporary file will be created.

VERTICAL (optional)

Set this property to flip the raster vertically. The options are true or false (default).

If you specify both the VERTICAL and HORIZONTAL properties, the image is flipped in both directions:

Version History

ENVI 5.4	Introduced
ENVI 5.5	OUTPUT_RASTER_URI now supports '*', which allows OUTPUT_RASTER to be virtual output.

API Version

4.2
